Troubleshooting Guide

Fix Your Bass Shaker
Delay in SimHub.
Step by Step.

If your shakers feel out of sync with what's happening on track, you're not imagining it. Most setups, including SimHub, run 140–200ms behind the action. That's the kerb you already left before you feel it hit. Here's every fix ranked by impact, and why ASIO is the only complete solution.

All setups Software & drivers 8 min read
In this guide
01 You're not imagining the delay 02 What actually causes it 03 Step-by-step: reduce SimHub delay 04 SimHub's ceiling — and why it exists 05 The proper fix: Track Impulse + ASIO 06 Frequently asked questions
01 — You're Not Imagining It

Most Setups Run
140–200ms Behind

The most common complaint in bass shaker threads isn't about tuning or hardware. It's about delay. Hit a kerb and the shaker fires a fraction of a second late. ABS kicks in and the flutter arrives after you've already lifted. At 200 km/h, 150ms of haptic latency means you're already 8 metres down the road before your seat reacts.

Community testing across multiple sound cards consistently measures 140–200ms end-to-end latency with standard bass shaker software. This isn't a driver issue or a hardware issue. It's baked into how the software is built.

Standard haptic software (SimHub etc.) 140 – 200ms
Track Impulse — iRacing 5 – 19ms
Track Impulse — ACC at 144fps 2 – 9ms
How much does that matter?

At 200 km/h, 150ms puts you 8.3 metres past the moment before feeling a kerb strike. That's two car lengths. As a cue for ABS, traction loss, or bump detection. It arrives too late to be useful.

02 — What Actually Causes It

Three Layers.
All Adding Up.

The delay isn't one big problem, it's several smaller ones stacked. Each layer is individually tolerable; together they produce a total that's clearly noticeable.

Layer 1 — General-purpose audio middleware (~50ms)

Standard bass shaker software routes all audio through a general-purpose audio engine originally designed for game soundtracks and cinematic effects. These engines use large default internal buffers to prevent glitches. At default settings (1024-sample blocks, 4 buffers, 48kHz) the average mixer latency from this layer alone is around 50ms, before audio even reaches the OS.

Layer 2 — Windows WASAPI shared mode (20ms+ floor)

On top of the software buffer, Windows audio shared mode adds its own mixing overhead. When multiple applications share the same audio device, Windows mixes everything before passing output to hardware. Independent testing consistently shows a floor of greater than 20ms in WASAPI shared mode, regardless of how small the buffer is set.

Layer 3 — Telemetry polling rate (~16ms)

Standard bass shaker software polls game telemetry at up to 60Hz, one tick every 16.7ms. Any event that occurs between ticks waits for the next one before triggering haptic output. On average, this adds about 8ms of quantisation delay on top of everything else.

The numbers

~50ms (audio middleware) + ~20ms (WASAPI) + ~8ms average polling delay gets close to the 140ms community-measured floor. Real systems vary, but the total is consistently 140–200ms across many hardware setups.

03 — Step-by-Step Fix

Reducing SimHub Delay:
Every Fix, In Order.

SimHub is the most widely used haptic software in sim racing. Its ShakeIt plugin routes audio through Windows WASAPI, which means Windows audio settings directly affect your shaker latency. Work through these steps in order. Each one is free and reversible.

1

Disable audio enhancements on your shaker output device

Windows applies signal processing effects: EQ, room correction, bass boost and loudness equalisation, on top of audio output. Each effect adds buffer latency inside the Windows audio stack. Disabling all of them is the single most impactful setting change you can make. This is documented in SimHub's own official wiki as a required step.

Control Panel → Sound → [right-click your shaker output device] → Properties → Advanced tab → Signal Enhancements → uncheck "Enable audio enhancements"

Apply and OK. If the Enhancements tab is missing entirely, your driver has already stripped them out, so move on to the next step.

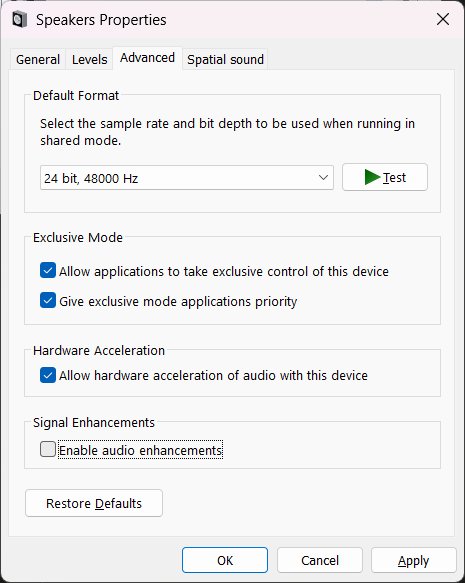

Windows Speaker Properties Advanced tab showing Signal Enhancements checkbox unchecked
Advanced tab: Signal Enhancements should be unchecked
2

Disable Windows Spatial Sound

Windows Sonic, Dolby Atmos for Headphones, DTS:X Ultra. These are spatial audio systems that intercept the audio stream and apply 3D processing before it reaches the hardware. Even when enabled "passively", they add processing overhead. Your shaker output device should have this set to Off.

Control Panel → Sound → [right-click your shaker output device] → Properties → Spatial sound tab → set to "Off"

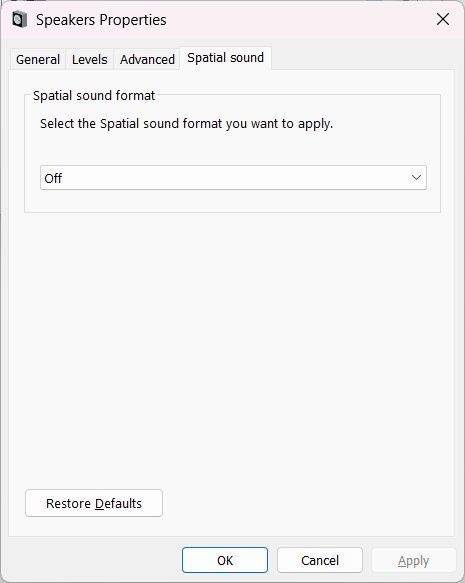

Windows Speaker Properties Spatial sound tab showing Off selected
Spatial sound tab: must be set to Off
3

Switch to Microsoft's generic HD Audio driver

Realtek's manufacturer drivers bundle additional audio processing objects (APOs) that run inside the Windows audio stack even with enhancements turned off. Microsoft's generic "High Definition Audio Device" driver strips all of that out. Community testing consistently reports a significant improvement with this change alone.

Device Manager → Sound, video and game controllers → [right-click your audio device] → Update driver → Browse my computer → Let me pick from a list → uncheck "Show compatible hardware" → Manufacturer: Microsoft → Model: High Definition Audio Device

Windows will warn you the driver isn't recommended, but proceed anyway. It's a first-party Microsoft driver and guaranteed to work. Note: Windows Update may push Realtek drivers back after major updates. If your latency worsens after an update, check this first.

4

Uninstall manufacturer audio software

Dolby Access, DTS Sound Unbound, Waves MaxxAudio, Nahimic, Sonic Studio, and ASUS Sonic. These applications install audio processing layers that run permanently in the Windows audio pipeline, regardless of whether the apps are open. They are commonly bundled on Dell, ASUS, HP, and Lenovo systems and often not obvious until you look.

Settings → Apps → search for: Dolby, DTS, Waves, Nahimic, Sonic, MaxxAudio → Uninstall any found

Restart after uninstalling, then re-test your shaker latency before continuing.

5

In SimHub: disable unused plugins and games

SimHub processes telemetry for every enabled game simultaneously and runs all loaded plugins in parallel. This overhead adds to the delay between data arriving and effects firing. Disable everything you don't actively use.

SimHub → Settings → Games → disable all except your sim
SimHub → Settings → Plugins → disable all except ShakeIt Bass Shakers

Restart SimHub after changing this.

6

In SimHub: reduce the buffer in Advanced Output Options

ShakeIt exposes audio buffer settings per device. Reducing the buffer size trims latency at the margins and won't eliminate the WASAPI floor, but every bit helps. If you hear crackling after reducing it, step it back up if your hardware or CPU can't sustain the smaller buffer.

SimHub → ShakeIt → Sound Output → [gear icon on your device] → Advanced Output Options → reduce buffer size

Available since SimHub 7.4.3. If you don't see the Advanced Output Options, update SimHub first.

04 — SimHub's Ceiling

Why These Fixes
Only Go So Far.

Working through all six steps above can genuinely recover 80–130ms of latency. For pure immersion, that may be enough. But there's a hard floor you cannot get below with SimHub, and it's architectural, not a settings problem.

SimHub's ShakeIt plugin generates audio through FMOD (visible in its own error logs) and routes it through Windows WASAPI in shared mode. In shared mode, Windows mixes all audio streams together before sending output to hardware, and that mixing process has an unavoidable latency floor of around 20ms regardless of buffer settings. No SimHub setting can bypass this because it's a Windows audio architecture constraint, not a SimHub bug.

SimHub's own forum confirms this

SimHub's feature request thread asking for ASIO support has been open for years. Users have measured 140–200ms end-to-end across many sound cards. The SimHub developer acknowledges the WASAPI floor. This is a known, unfixed architectural limitation. The only way past it is software that uses ASIO from the ground up.

What you're left with after all fixes

After steps 1–6 above, most users still measure 100ms+ end-to-end, consistent with what's widely reported in SimHub forums. That's a real improvement over the out-of-box experience, but at 150 km/h it still puts you several metres past the moment before feeling a kerb strike. Usable for immersion; not precise enough to act on as a driving cue.

05 — The Proper Fix

Track Impulse:
Built for Latency
From Day One.

Most haptic software starts as a general-purpose tool and adds bass shaker support later. Track Impulse was built the other way around. Latency was the design constraint everything else was built around. That shapes every layer of how it works.

Rather than polling game telemetry on a timer like SimHub's 60Hz loop, TI uses event-driven shared memory reading, waking the instant the sim writes new data. On the output side, TI supports ASIO for the lowest possible audio latency, but critically, even on a standard sound card with no ASIO driver, TI achieves latency that standard haptic software can't reach.

No ASIO hardware? You're still well ahead.

On a standard sound card using WDM-KS output, Track Impulse on ACC delivers 12–19ms end-to-end. SimHub users are still sitting at 100ms+ even after every driver fix and settings tweak — TI gets well under that on hardware you already own, with no driver changes needed. Add an ASIO interface and ACC drops to 2–9ms.

Setup
End-to-end latency
Notes
SimHub — after all fixes
100ms+
WASAPI shared mode floor remains
Track Impulse — standard sound card (WDM-KS)
12 – 19ms
ACC at 144fps, no ASIO required
Track Impulse — ASIO interface
2 – 9ms
ACC at 144fps, with ASIO interface

At 150 km/h, 9ms puts you 37 centimetres past the moment. Even at 19ms, on a standard sound card with no extra hardware, you're under 80 centimetres. Compare that to 100ms+ after every SimHub fix, which is still over 4 metres of travel before you feel anything.

Want to go further with ASIO?

Any audio interface with a native ASIO driver will get you there. ASIO4ALL also works with most existing sound cards for free if you want to try it before investing in new hardware. See the full interface guide →

06 — Frequently Asked Questions

Common Questions

I've done all the SimHub fixes — why is there still delay?

Because SimHub routes audio through WASAPI shared mode, which has an unavoidable ~20ms floor that no setting can remove. The six-step guide above can recover 80–130ms of the total, but you can't eliminate the WASAPI floor without switching to software that uses ASIO natively.

Why does my shaker still feel delayed after reinstalling drivers?

Driver reinstalls fix part of the problem — removing Realtek's built-in audio processing can recover a meaningful chunk of latency — but the remainder comes from the software's WASAPI audio pipeline. You need software that uses ASIO output to eliminate that layer entirely.

Does a dedicated USB audio card fix bass shaker delay?

It removes routing conflicts and can improve stability, but the same software buffers and WASAPI overhead still apply. You'll still measure 40ms+ with SimHub on a dedicated card even after all other fixes.

Does ASIO4ALL work the same as a native ASIO driver?

ASIO4ALL is a wrapper that gives ASIO-style access to standard Windows audio devices. It's better than WASAPI shared mode, but native ASIO drivers from the interface manufacturer are lower latency and more stable for continuous haptic use.

Can I run game audio and ASIO shakers at the same time?

Yes. Use a separate audio interface for your shakers. ASIO exclusively claims that device, while your main speakers or headset run through a different output via standard Windows audio.

What latency should I expect with Track Impulse?

2–9ms on ACC at 144fps, or 5–19ms on iRacing, with a native ASIO interface at 64 samples / 48kHz. The range reflects real-world variation in sim telemetry delivery timing. Audio output latency at those settings is 1.3ms.
